Open-Coil vs Tubular Electric Heaters: Engineering Trade-Offs Explained

Choosing the correct electric heater is not just about matching voltage and wattage. In industrial and commercial systems, heater performance is influenced by airflow, operating temperature, duty cycle, space limitations, safety requirements, and long-term reliability. Two of the most widely used technologies are open-coil electric heaters and tubular electric heaters. While both convert electrical energy into heat, they behave very differently under real operating conditions.

Understanding these differences helps engineers, OEMs, and facility managers select heater designs that perform reliably in the field rather than only meeting specifications on paper.

What Are Open-Coil Electric Heaters

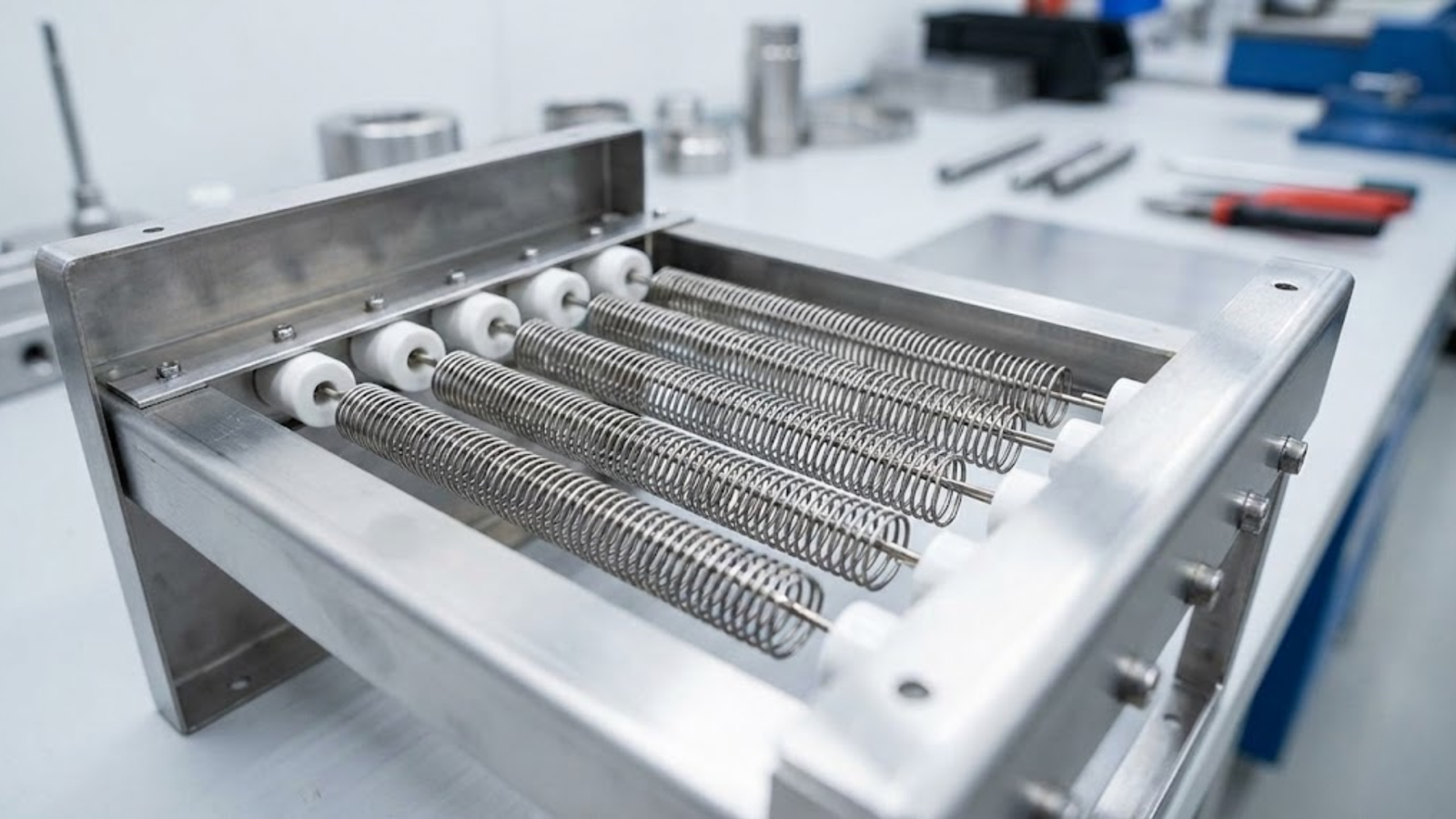

Open-coil electric heaters use exposed resistance wire, most commonly nickel-chromium alloy, supported by ceramic or mica insulators. The heating element is directly exposed to the airflow, allowing heat to transfer immediately into moving air.

Because the coil interacts directly with airflow, open-coil heaters respond very quickly to power changes and deliver highly efficient air heating. They are commonly used in HVAC duct heaters, make-up air units, air handlers, and industrial process air systems where fast temperature rise and uniform heat distribution are required.

Examples of typical configurations can be found in open-coil electric air heaters designed specifically for controlled airflow environments.

Engineering Advantages of Open-Coil Heaters

Open-coil designs offer rapid heat-up and cool-down response, making them ideal for systems that cycle frequently. Heat transfer efficiency is high because there is no sheath or insulation layer between the resistance wire and the air.

The lower thermal mass reduces energy waste and improves temperature control. Open-coil heaters are also serviceable in many designs, allowing coils and insulators to be replaced rather than discarding the entire assembly.

Engineering Limitations

Because the heating element is exposed, open-coil heaters require clean and well-controlled airflow. They are not suitable for environments containing dust, grease, moisture, or corrosive contaminants.

Proper airflow verification and over-temperature protection are essential to prevent overheating or premature failure.

What Are Tubular Electric Heaters

Tubular electric heaters enclose the resistance wire inside a metal sheath, typically stainless steel or Incoloy. Magnesium oxide insulation surrounds the wire inside the sheath, transferring heat outward while providing electrical isolation.

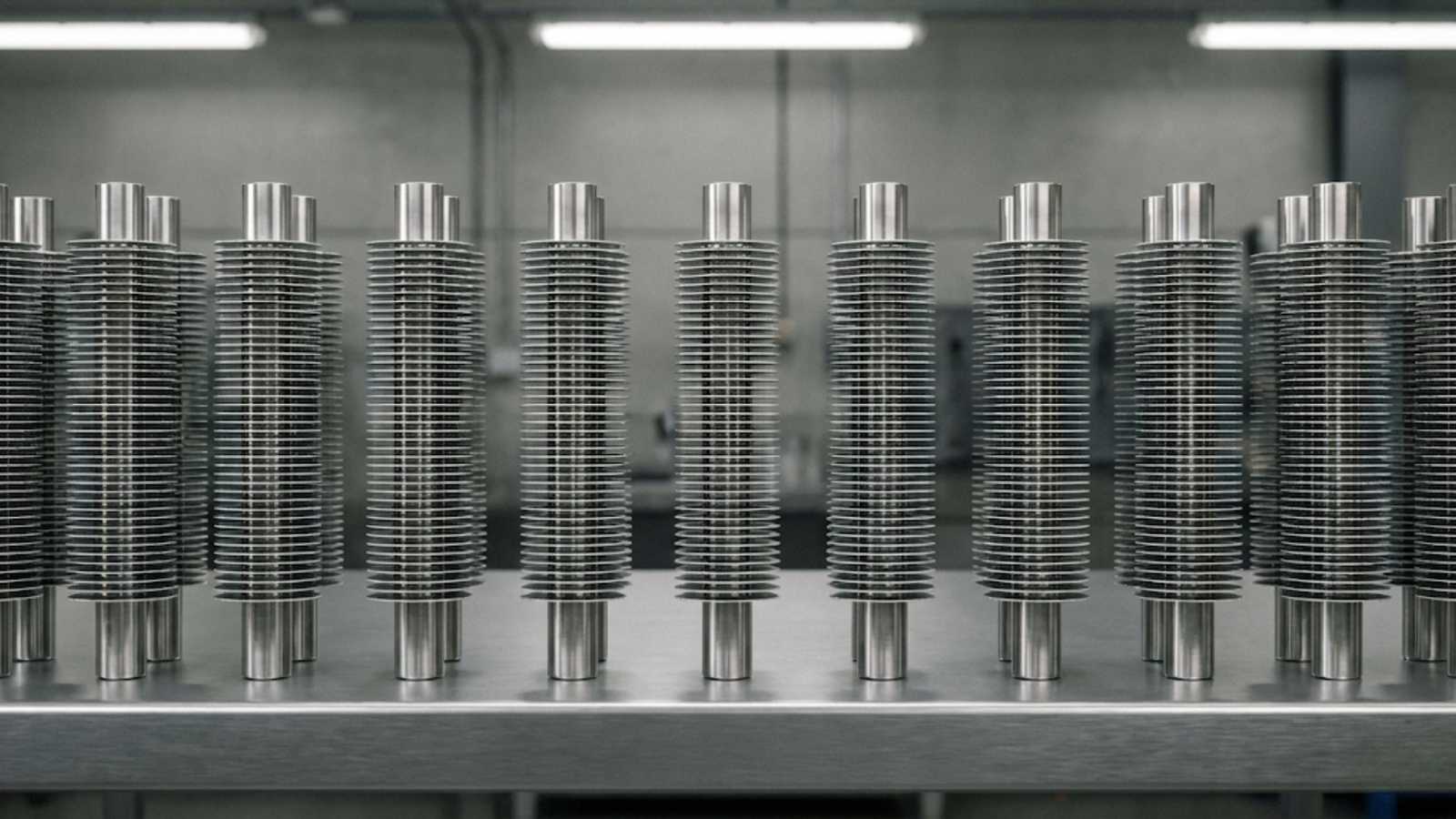

This enclosed construction makes tubular heaters mechanically robust and suitable for a wide range of environments, including air, liquids, and surface contact applications. In air heating systems, finned tubular heaters are commonly used to increase surface area and improve heat transfer efficiency.

Typical industrial designs are shown in finned tubular electric heaters used where durability and environmental protection are priorities.

Engineering Advantages of Tubular Heaters

Tubular heaters offer strong resistance to moisture, debris, and chemical exposure. Their enclosed design reduces the risk of electrical contact and simplifies integration into systems with less predictable operating conditions. They can be bent and formed into a wide variety of shapes, making them versatile for different heating applications.

Engineering Limitations

Heat must pass through the sheath and insulation before reaching the medium, which slows thermal response compared to open-coil designs. In air heating applications, higher watt density can shorten heater life if airflow is insufficient. Tubular heaters are typically replaced rather than repaired, which can increase lifecycle cost in some systems.

Heat Transfer and Efficiency Differences

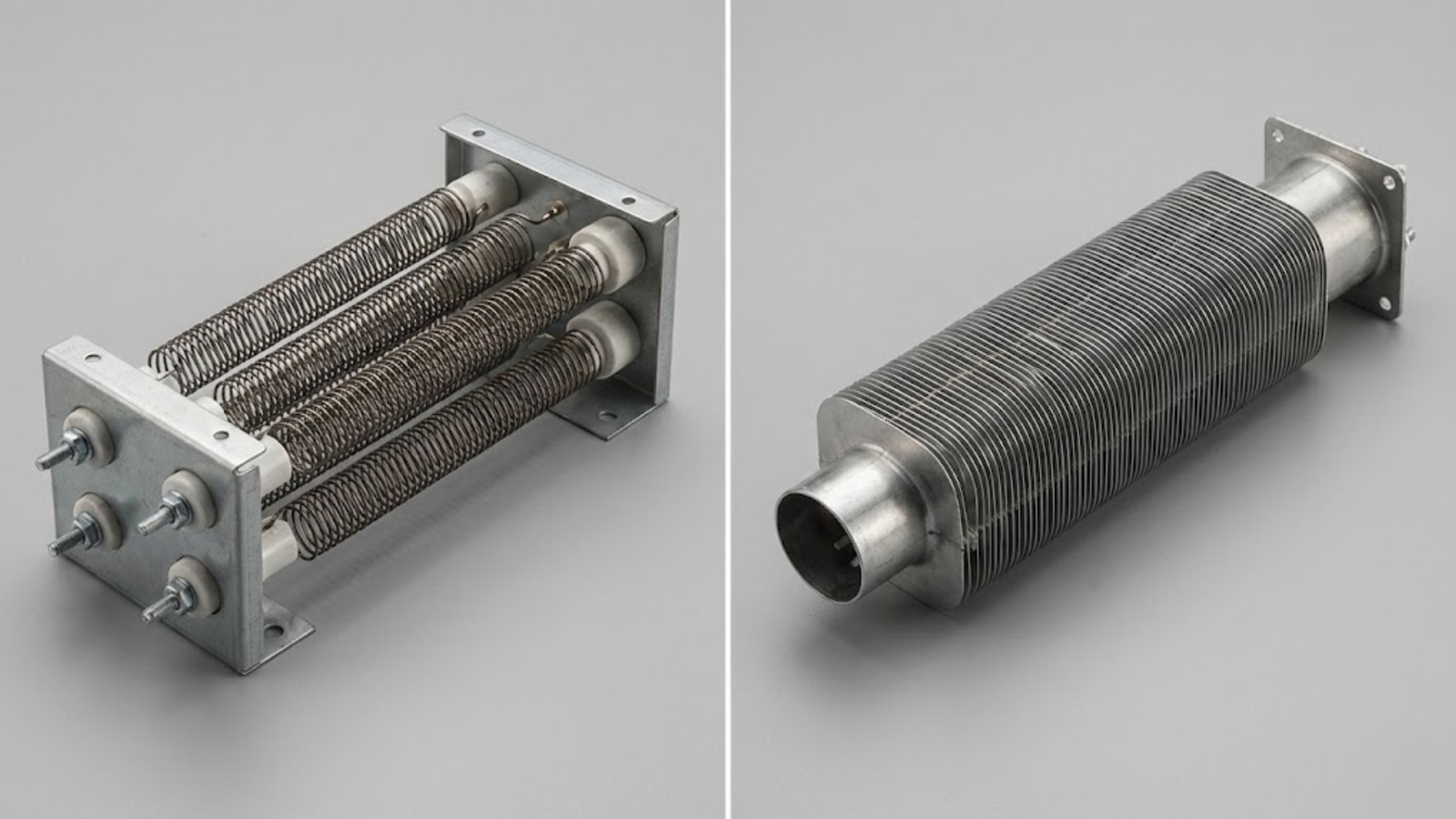

The fundamental trade-off between open-coil and tubular heaters lies in how heat is transferred.

Open-coil heaters transfer heat directly to the air with minimal resistance. This results in faster response times and more uniform air temperature, especially in systems with high or variable airflow.

Tubular heaters introduce a thermal barrier between the resistance wire and the medium. This reduces responsiveness but improves durability and allows operation in environments where exposed coils would not survive.

In clean and controlled airflow systems, open-coil heaters generally provide better efficiency and temperature control. In contaminated or high-risk environments, tubular heaters deliver greater reliability even though efficiency may be lower.

Safety and Environmental Considerations

Safety requirements often influence heater selection as much as performance.

Open-coil heaters depend on proper airflow monitoring, spacing, and over-temperature protection to operate safely. Tubular heaters provide inherent electrical isolation due to the metal sheath, which can simplify compliance in environments where debris, moisture, or operator exposure is a concern.

Neither design is universally safer. The correct choice depends on how well the heater is matched to the operating environment.

Maintenance, Repair, and Lifecycle Cost

Maintenance strategy plays a major role in the total cost of ownership.

Open-coil heaters are often repairable. Coils and ceramic supports can be replaced, restoring performance without replacing the entire assembly. This is valuable in facilities where downtime and replacement cost must be minimized.

Tubular heaters typically require full replacement when they fail. While they may last longer in harsh conditions, failure usually means removing and replacing the entire element.

When Each Heater Type Makes Sense

Open-coil electric heaters are usually the better choice when airflow is clean and controlled, fast thermal response is required, efficiency matters, and serviceability is important.

Tubular electric heaters are better suited for environments with moisture, debris, or chemicals, applications requiring mechanical durability, or systems where electrical isolation is a primary concern.

Engineering Decisions Over Catalog Choices

There is no single heater technology that fits every application. Selecting between open-coil and tubular electric heaters should be based on airflow conditions, duty cycle, contamination risk, maintenance strategy, and temperature control requirements.

By understanding these engineering trade-offs, designers and operators can specify heaters that deliver consistent performance and long service life in real-world conditions, not just compliance with catalog specifications.
